Advanced Microscopy Simplified

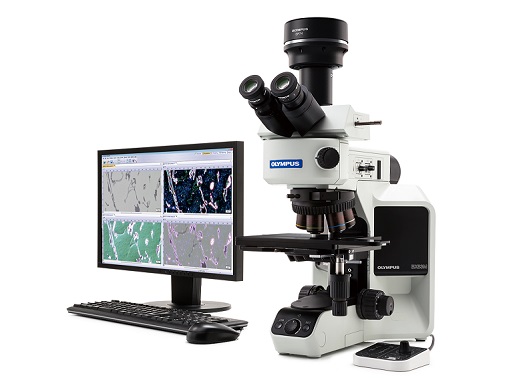

Designed with modularity in mind, the BX3M series provide versatility for a wide variety of materials science and industrial applications. With improved integration with OLYMPUS Stream software, the BX53M provides a seamless workflow for standard microscopy and digital imaging users from observation to report creation.

Choose the Best Model

Six BX53M suggested configuration provide you with flexibility to choose the features that you need.

For General use: Entry, Standard, Advanced
For Dedicated use: Fluorescence, Infrared, Polarization
Various configurations to meet users' requirements
Modular Design, Build Your System Your Way

BX53M Reflected and Reflected/Transmitted Light Combination

There are two types of microscope frames in the BX3M series, one for reflected light only and one for both reflected and transmitted light. Both frames can be configured with manual, coded, or motorized components. The frames are outfitted with ESD capability to protect electronic samples.

SPECIFICATIONS OF BX53M SUGGESTED CONFIGURATION FOR GENERAL USE

			Entry		Standard		Advanced
Optical system			UIS2 optical system (infinity-corrected)
Main unit	Microscope frame		BX53MRF-S (Reflected)	BX53MTRF-S (Reflected/Transmitted)	BX53MRF-S (Reflected)	BX53MTRF-S (Reflected/Transmitted)	BX53MRF-S (Reflected)	BX53MTRF-S (Reflected/Transmitted)
	Focus		Stroke: 25 mm Fine stroke per rotation: 100 μm Minimum graduation: 1 μm With upper limit stopper, torque adjustment for coarse handle
	Max. specimen height		Reflected: 65 mm (w/o spacer), 105 mm (with BX3M-ARMAD) Reflected/Transmitted: 35 mm (w/o spacer), 75 mm (with BX3M-ARMAD)
	Observation tube	Wide field (F.N.22)	U-TR30-2-2 Inverted: trinocular
	Illumination	Reflected light Transmitted light	BX3M-KMA-S White LED, BF/DIC/POL/MIX FS, AS (with centering mechanism), BF/DF interlocking		BX3M-RLAS-S Coded, White LED, BF/DF/DIC/POL/MIX FS, AS (with centering mechanism), BF/DF interlocking
			－	BX3M-LEDT White LED Abbe/long working distance condensers	－	BX3M-LEDT White LED Abbe/long working distance condensers	－	BX3M-LEDT White LED Abbe/long working distance condensers
	Revolving nosepiece		U-5RE-2 For BF: Quintuple		U-D6BDRE For BF/DF: Sextuple			U-D6BDRES-S For BF/DF : Sextuple, Coded
	Eyepiece（F.N.22)		WHN10 WHN10X-H

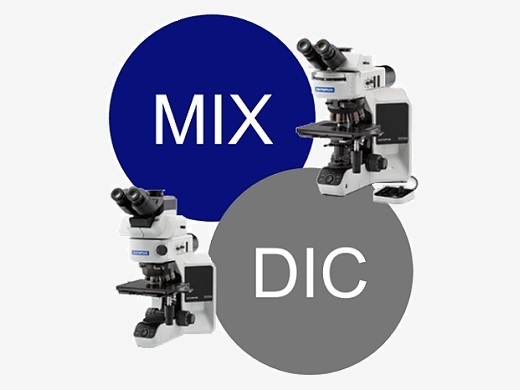

	MIX observation		－					BX3M-CB Control box BX3M-HS Hand switch U-MIXR MIX slider for reflected light observation U-MIXRCBL Cable for MIXR
	Condenser (Long working distance)		－	U-LWCD	－	U-LWCD	－	U-LWCD
	Power cable		UYCP (x1)					UYCP (x2)
	Weight		Reflected: approx.15.8 kg (microscope frame 7.4 kg) Reflected/transmitted: approx. 18.3 kg (microscope frame 7.6 kg)
Objectives	MPLFLN set		MPLFLN5X, 10X, 20X, 50X, 100X BF/DIC/POL/FL observation		－
	MPLFLN BD set		－		MPLFLN5XBD, 10XBD, BD, 50XBD, 100XBD BF/DF/DIC/POL/FL observation
	MPLFLN-BD, LMPLFLN-BD set		－		MPLFLN5XBD, 10XBD, LMPLFLN20XBD, 50XBD, 100XBD BF/DF/DIC/POL/FL observation
Stage (X x Y)	76 mm x 52 mm set		U-SVRM, U-MSSP Coaxial left handle stage / 76 (X) × 52 (Y) mm, with torque adjustment
	100 mm x 10 0mm set		U-SIC4R2, U-MSSP4 Large-size coaxial left handle stage / 100 (X) x 100 (Y) mm, with lock mechanism in Y axis
	100 mm x 100 (G) mm set		U-SIC4R2, U-MSSPG Large-size coaxial right handle stage / 100 (X) x 100 (Y) mm, with lock mechanism in Y axis (Glass plate)
	150 mm x 100 mm set		U-SIC64, U-SHG, U-SP64 Large-size coaxial right handle stage / 150 (X) x 100 (Y) mm, with torque adjustment, with lock mechanism in Y axis
	150 mm x 100 (G) mm set		U-SIC64, U-SHG, U-SPG64 Large-size coaxial right handle stage / 150 (X) x 100 (Y) mm, with torque adjustment, with lock mechanism in Y axis (Glass plate)
Option	MIX observation set*		BX3M-CB, BX3M-HS, U-MIXR, U-MIXRCBL				－
	DIC*		U-DICR
	Intermediate Tubes		U-CA, U-EPA2, U-TRU-1-2, U-TRU
	Filters		U-25ND6, U-25ND25, U-25LBD, U-25LBA, U-25Y48, U-AN360-3, U-AN360P, U-PO3, U-POTP3, U-25IF550, U-25L42, U-25, U-25FR
	Filter for condenser		43IF550-W45, U-POT
	Stage plate		U-D6BDRES-S, U-D6RE-ESD-2, U-D6BDRES-ESD, U-5RES-ESD
	Specimen holder		U-HRD-4, U-HLD-4, U-HRDT-4, U-HLDT-4
	Handle rubber		U-SHG, U-SHGT

*Cannot be used with U-5RE-2.

BX53M / BXFM ESD UNITS

Items	Microscope frame	BX53MRF-S, BX53MTRF-S
	Illuminator	BX3M-KMA-S, BX3M-RLA-S, BX3M-URAS-S, BX3M-RLAS-S
	Nosepiece	U-D6BDRES-S, U-D6RE-ESD, U-D5BDREMC-ESD, U-5RES-ESD
	Stage	U-SIC4R2, U-SIC4L2, U-MSSP4

SPECIFICATIONS OF BX53M SUGGESTED CONFIGURATION FOR DEDICATED USE

				Fluorescence		Infrared	Polarized
Optical system				UIS2 optical system (infinity-corrected)
Main unit	Microscope frame			BX53MRF-S (Reflected)	BX53MTRF-S (Reflected/ Transmitted)	BX53MRF-S (Reflected)	BX53MTRF-S (Reflected/Transmitted)
	Focus			Stroke: 25 mm Fine stroke per rotation: 100 μm Minimum graduation: 1 μm With upper limit stopper, torque adjustment for coarse handle
	Max. specimen height			Reflected: 65 mm (w/o spacer), 105 mm (with BX3M-ARMAD) Reflected/Transmitted: 35 mm (w/o spacer), 75 mm (with BX3M-ARMAD)
	Observation tube	Wide field (F.N.22)		U-TR30-2 Inverted: trinocular		U-TR30IR Inverted: trinocular for IR	U-TR30-2 Inverted: trinocular
		Polarized Light Intermediate Attachment (U-CPA)	Bertrand Lens	－		－	Focusable
			Bertrand Field Stop	－		－	ø3.4 mm diameter (fixed)
			Engage or disengage Bertrand lens changeover between orthoscopic and conoscopic observation	－		－	Position of slider ● in Position of slider ○ out
			Analyzer Slot	－		－	Rotatable Analyzer with Slot (U-AN360P-2)
	Illumination	Reflected light	FL observation	BX3M-URAS-S Coded, 100 W mercury lamp, 4 position mirror unit turret, (standard: WB, WG, WU+BF etc) With FS, AS (with centering mechanism), With shutter mechanism		－	－
			IR observation	－		BX3M-RLA-S 100W halogen lamp for IR, BF/IR, AS (with centering mechanism) U-LH100IR (Including 12V 10W HAL-L) 100W Halogen light source for IR TH4-100 100W power supply TH4-HS Hand switch U-RMT Extension cord	－
		Transmitted light	POL observation	－		－	BX3M-LEDT White LED Abbe/long working distance condensers
	Revolving nosepiece			U-D6BDRES-S For BF/DF : Sextuple, Coded		U-5RE-2 For BF : Quintuple	U-P4RE Quadruple, centerable attachable components 1/4 wavelength retardation plate (U-TAD), tint plate (U-TP530) and various compensators can be attached using plate adapter (U-TAD)
	Eyepiece（F.N.22)			WHN10X
				WHN10X-H			CROSS-WHN10X
	Mirror units			U-FDF For BF, detectable ND filter U-FBFL For BF, built-in ND filter U-FWUS For Ultra Violet-FL U-FWBS For Blue-FL U-FWGS For Green-FL		－
	Filter / Polarizer / Analyzer			U-25FR Frost filter		U-BP1100IR/U-BP1200IR Band path filters for IR	43IF550-W45 Green filter
				U-POIR Reflected polarizer slider for IR		U-AN360IR Rotatable analyzer slider for IR	U-AN360P-2 360° Dial-rotatable Rotatable minimum angle 0.1°
	Condenser			U-LWCD Long working distance		－	U-POC-2 Achromat strain-free condenser. 360°rotatable polarizer with swing-out achromatic top-lens. Click stop at position "0°" is adjustable. NA 0.9 (top-lens in) / NA 0.18 (top-lens out) Aperture iris diaphragm: adjustable from 2 mm to 21 mm diameters
	Slider / Compensators			－			U-TAD Slider (Plate adapter)
							U-TP530 / U-TP137 Compensators
	Power cable			UYCP (x1)		UYCP (x2)	UYCP (x1)
	Weight			Reflected: approx.15.8 kg (microscope frame 7.4 kg)	Reflected/transmitted: approx. 18.3 kg (microscope frame 7.6 kg)	Approx.18.9 kg (microscope frame 7.4 kg)	Approx.16.2 kg (microscope frame 7.6 kg)
Reflected FL light source	Light guide			U-HGLGPS, U-LLGAD, U-LLG150, SHI-130OL Light guide set		－	－
	Mercury lamp			U-LH100HGAPO1-7, USH-103OL (x2), U-RFL-T, U-RCVMercury lamp set		－	－
Objectives	MPLFLN set			MPLFLN5X, 10X, 20X, 50X, 100X BF/DIC/POL/FL observation		－	－
	MPLFLN BD set			MPLFLN5XBD, 10XBD, BD, 50XBD, 100XBD BF/DF/DIC/POL/FL observation		－	－
	MPLFLN-BD, LMPLFLN-BD set			MPLFLN5XBD, 10XBD, LMPLFLN20XBD, 50XBD, 100XBD BF/DF/DIC/POL/FL observation		－	－
	IR set			－		LMPLN5XIR,10XIR,LCPLN20XIR,50XIR,100XIR IR observation	－
	POL set			－		－	UPLFLN4XP,10XP,20XP,40XP POL observation
Stage (X x Y)	76 mm x 52 mm set			U-SVRM, U-MSSP Coaxial left handle stage / 76 (X) × 52 (Y) mm, with torque adjustment
	100 mm x 10 0mm set			U-SIC4R2, U-MSSP4 Large-size coaxial left handle stage / 100 (X) x 100 (Y) mm, with lock mechanism in Y axis
	100 mm x 100 (G) mm set			U-SIC4R2, U-MSSPG Large-size coaxial right handle stage / 150 (X) x 100 (Y) mm, with lock mechanism in Y axis (Glass plate)
	150 mm x 100 mm set			U-SIC64, U-SHG, U-SP64 Large-size coaxial right handle stage / 150 (X) x 100 (Y) mm, with torque adjustment, with lock mechanism in Y axis
	150 mm x 100 (G) mm set			U-SIC64, U-SHG, U-SPG64 Large-size coaxial right handle stage / 150 (X) x 100 (Y) mm, with torque adjustment, with lock mechanism in Y axis (Glass plate)
	POL set			－			I-SRP-1-2+U-FMP Polarizing rotatable stage + Mechanical stage
Option	MIX observation set*			BX3M-CB, BX3M-HS, U-MIXR, U-MIXRCBL
	DIC*			U-DICR
	Intermediate Tubes			U-CA, U-EPA2, U-TRU-1-2, U-TRU
	Filters			U-25ND6, U-25ND25, U-25LBD, U-25LBA, U-25Y48, U-AN360-3, U-AN360P, U-PO3, U-POTP3, U-25IF550, U-25L42, U-25, U-25FR
	Filter for condenser			43IF550-W45, U-POT
	Stage plate			U-WHP64, BH2-WHR43, BH2-WHR54, BH2-WHR65, U-WHP2, BH2-WHR43
	Specimen holder			U-HRD-4, U-HLD-4, U-HRDT-4, U-HLDT-4
	Handle rubber			U-SHG, U-SHGT

*Cannot be used with U-5RE-2

BX53MRF-S example configuration

BX53MTRF-S example configuration
