A high value, high accuracy dimensional metrology system
|
|
|

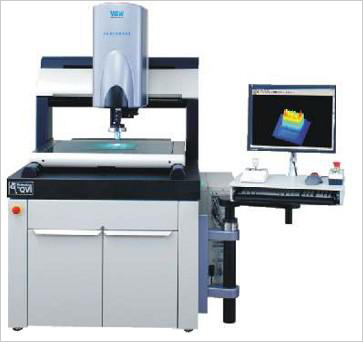

The VIEW Benchmark 450 non-contact metrology system delivers VIEW performance with generous measuring envelopes. It includes a large, 450 x 450 mm stage suitable for large footprint parts or nested groups of smaller parts. Advanced optics, illumination, and image processing make the Benchmark 450 a world-class metrology system.
Available optional software packages increase system versatility:：
- CAD import (DXF/IGES) Software
- Form fitting and analysis Software
- Off-line Programming Software
- QC-Calc™ Statistical Process Control (SPC) — Real-time analysis and reporting software
- Elements™ CAD To Measure metrology software
|
Featuring：
- 450 x 450 x 200 mm (18 x 18 x 8 in.) measuring range
- 65 kg (140 lbs) maximum load
- Sub-micron scale resolution
- Stage Drive velocity XY: 150 mm/sec; Z: 100 mm/sec
- Stage Error Mapping：Non-linear 2D error corrections in X-Y plane
- High-precision dual magnification optical system
- Optional Programmable Multi-Color Ring Light (PRL)
- Optional through-the-lens (TTL) laser with autofocus and scanning capabilities
- Advanced image processing for high speed, accuracy and robustness
- Dual, digital, 1.4 megapixel monochrome cameras; 4:1 ratio
- Subpixel accuracy of 1/10 to 1/50 pixel
- Choice of powerful metrology software and data analysis tools
- MTBF % 8,000 hours
Applications for Benchmark include：
. SMT and Electronic Components
PCBs and Stencils
SMT component placement
Solder paste/Epoxy glue dot
Chip carriers and trays
Inkjet printer cartridges
Lead frames, wire bonds, flex circuits, connectors
Fiber optic components and MEMs
. Data Storage
Wafer carriers and row bar pallets
Slider and Head Gimble Assemblies (HGA)
Suspensions
. Precision plastic molded and machined parts
Dies and tooling
Medical devices
Fuel injection components
Watch components
