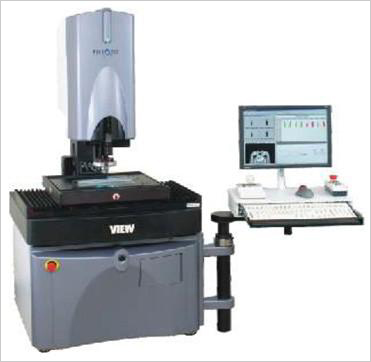

A high throughput, high accuracy dimensional metrology system
|
|
|
The VIEW Pinnacle 250 delivers unmatched accuracy and throughput, MTBF performance, and the lowest cost of ownership for an automated measuring system of its kind. Its exclusive multi-color Programmable Ring Light (PRL) allows use of red, green, blue, or white LED light to effortlessly image the toughest applications.
State-of-the-art linear motion control technology provides the fastest, most reliable, and maintenance-free platform available for high volume, high capacity operation in production environments ranging from clean rooms to factory floors.
Available optional software packages increase system versatility：
- CAD import (DXF/IGES) Software
- Form fitting and analysis Software
- Off-line Programming Software
- QC-Calc™ Statistical Process Control (SPC) — Real-time analysis and reporting software
- Elements™ CAD To Measure metrology software
|
Featuring:：
- 250 x 150 x 100 mm (10 x 6 x 4 in.) measuring range
- 25 kg (55 lbs) maximum load
- Sub-micron scale resolution
- 400 mm/sec stage X, Y velocity with frictionless linear motor drives
- DC servo, rotary motor drive on Z axis, 100 mm/sec
- Stage Error Mapping：Non-linear 2D error corrections in X-Y plane
- Dual magnification, fixed lens optical system with 1x and 4x internal magnifications
- Programmable LED illumination system for stage backlight and coaxial surface light
- Optional Programmable Multi-Color Ring Light (PRL)
- Optional through-the-lens (TTL) laser autofocus and scanning sensor
- SpectraProbeTM high resolution chromatic sensor
- Advanced image processing for high speed, accuracy and robustness
- Dual, digital, 1.4 megapixel monochrome cameras; 4:1 ratio
- Subpixel accuracy of 1/10 to 1/50 pixel
- Standalone Anthro Cart Operator workingstation
- Choice of powerful metrology software and data analysis tools
- MTBF ≥ 8,000 hours
- Optional ESD and Class 1000 clean room compatible
Applications for Pinnacle include：
Semiconductor/Electronics
BGA, μBGA, CSP, flip-chip, MCM, bump-on-die
Lead frames, wire bonds, flex circuits, connectors
SMT component placement
Solder paste/Epoxy glue dot
Chip carriers and trays
Inkjet printer cartridges
Fiber optic components and MEMs
Data Storage
Suspensions
Slider and Head Gimble Assemblies (HGA)
Disk Media substrates
Precision plastic molded and machined parts
Dies and tooling
Medical devices
Fuel injection components
Watch components
