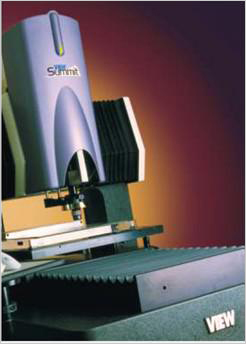

A large travel, high accuracy dimensional metrology system
|
|
The VIEW Summit delivers high accuracy and high measuring speeds for near-line process monitoring and quality assurance applications. XY Stage velocities of 200 mm/sec (standard model) and 400 mm/sec (with optional linear motor drive system) ensure very high productivity on the factory floor.
Available in two large travel sizes, Summit is ideally suited for measuring large footprint parts such as PCBs, stencils, flat panel displays, etching sheets, and
mask patterns, as well as nested groups of smaller parts.
Available optional software packages increase system versatility：
- CAD import (DXF/IGES) Software
- Form fitting and analysis Software
- Off-line Programming Software
- QC-Calc™ Statistical Process Control (SPC) — Real-time analysis and reporting software
- VIP (VIEW Interface Program) — Optional VMS operator interface with direct links to data analysis
|
Featuring：
- Measuring range: 450 x 600 x 150 mm (18 x 24 x 6 in.)
- 50 kg (110 lbs) maximum load
- Sub-micron scale resolution
- Stage Drive velocity XY: 200 mm/sec; Z: 100 mm/sec
- Optional 400 mm/sec stage X, Y velocity with frictionless linear motor drives
- Stage Error Mapping：Non-linear 2D error corrections in X-Y plane
- Dual magnification, fixed lens optical system with 1x and 4x internal magnifications
- Programmable LED illumination system for stage backlight and coaxial surface light
- Optional Multi-Color (red, blue, green and composite white) LED illumination Programmable Ring Light (PRL)
- Optional through-the-lens (TTL) laser with autofocus and scanning capabilities
- Optional Triangluation and confocal laser displacement sensors
- Optional SpectraProbeTM high resolution chromatic sensor
- Advanced image processing for high speed, accuracy and robustness
- Dual, digital, 1.4 megapixel monochrome cameras; 4:1 ratio
- Subpixel accuracy of 1/10 to 1/50 pixel
- Stand-alone Anthro Cart Operator workstation; 90 x 90 x 128 cm; 40kg
- Optional Integrated adjustable sit / stand workstation arm, with independent height adjustment for monitor and keyboard that provides support for the flat panel display and peripherals
- Choice of powerful metrology software and data analysis tools
- MTBF ≥ 8,000 hours
Applications for Summit include：
Semiconductor/Electronics
PCBs and Stencils
Photo masks
Lead frames, wire bonds, flex circuits, connectors
SMT component placement
Solder paste/Epoxy glue dot
Chip carriers and trays
Inkjet printer cartridges
Data Storage
Suspensions
Slider and Head Gimble Assemblies (HGA)
Disk Media substrates
Precision plastic molded and machined parts
Dies and tooling
Medical devices
Fuel injection components
Watch components
