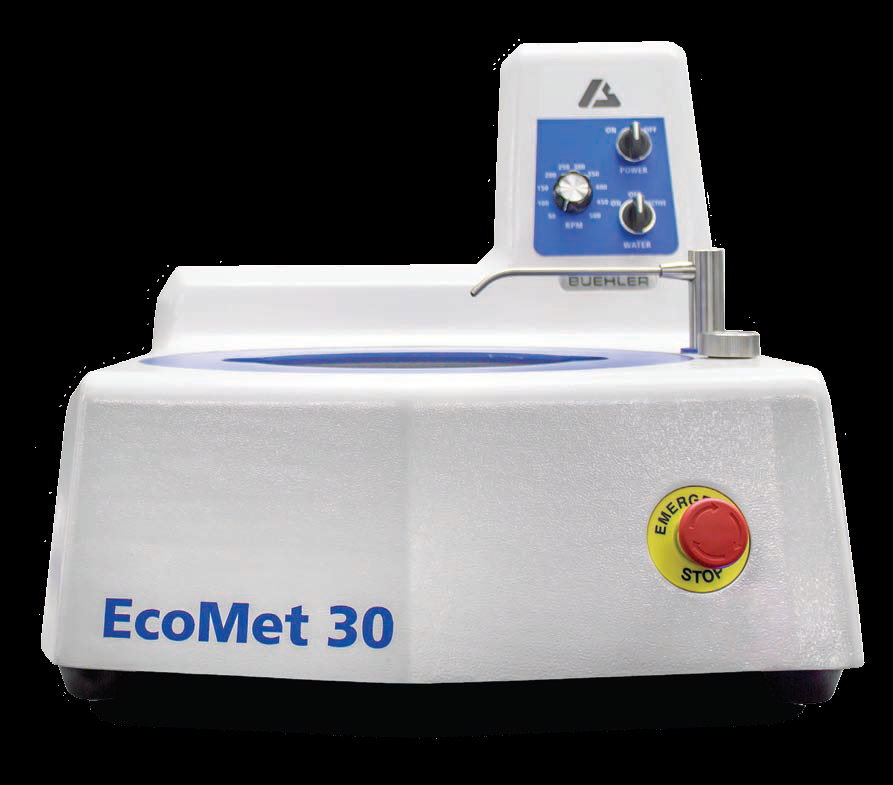

EcoMet 30 Features
The EcoMet 30 family provides simple operation for routine grinding and polishing. The comfortable splash guard design allows for excellent control during manual grinding. The semi-automatic units are controlled with a touchscreen interface. All regularly used functions are accessed on the front screen with no complicated menus that can add time to the process. The EcoMet 30 saves time with advanced cleaning features. The all metal casting is durable and stable for use in busy lab environments.
Ergonomic Manual Polish
- Large flat work space and ergonomic bowl height provides better control and more comfort.
- Additional control improves sample quality and reduces grinding time.
Easy to Clean
- Easy to remove platens allows for fast deep cleaning.
- Large straight path draining system.
| Specifications |
EcoMet30 Manual |

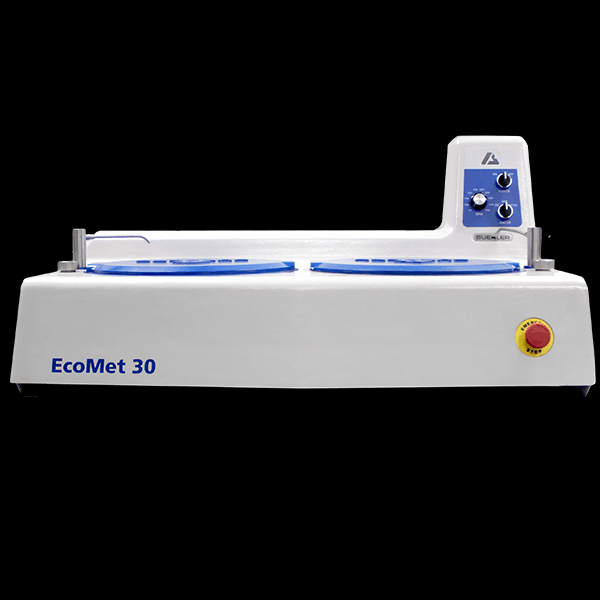

EcoMet 30 Manual Twin |
|---|
| Machine Power |
100-240VAC,50/60Hz,1 phase |
| Motor Power |
300W |
440W |
| Platen Diameter |
8in [203mm], 10in [254mm], 12in [305mm] |
| Platen Wheel Speed |
50-500rpm stepless speed regulation |
| Platen Direction |
Counter-Clockwise |
| Water Supply Hose |
0.25in [6mm] OD tube |
| Water Supply Pressure |
40-100psi[2.7-6.8bar] |
| Power Usage |
0.64kW,5.6/2.78A @115/230VAC |
0.97kW,8.5/4.1A @115/230VAC |
| Membrane Control Panel |
Knob switch |
| Base Sound Rating |
65dB @ 500rpm |
| Weight |
Single-101.5lbs [46kg] |
Twin-154lbs [70kg] |
| Compliance |
CE Directives |
| Operation |
Base |
Voltage/Frequency |
|
|---|
| Manual |
49-10070 |
100-240VAC,50/60Hz,1 phase |
|
| Twin Manual |
49-10072 |
100-240VAC,50/60Hz,1 phase |
|
Accessories & Consumables for the EcoMet30 Manual Single Grinder Polisher

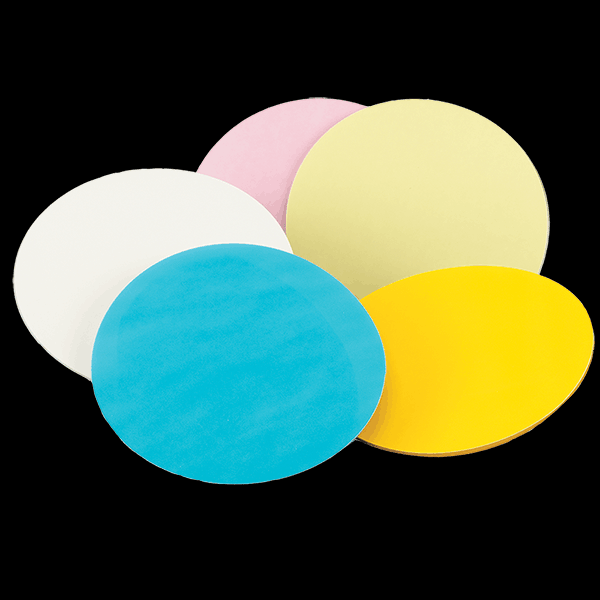

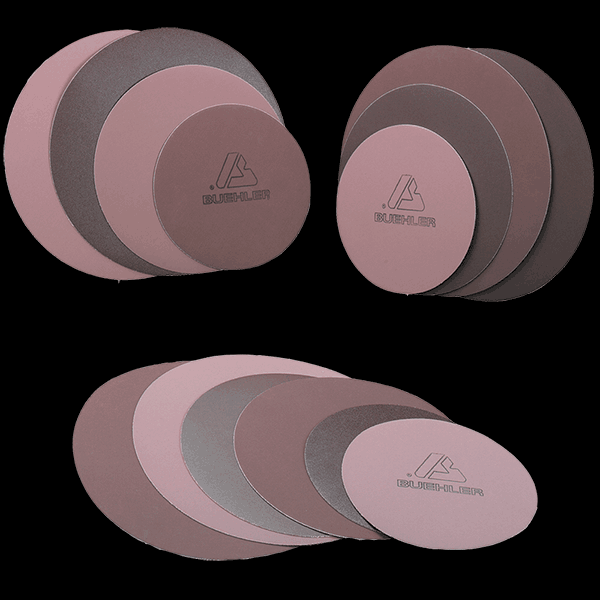

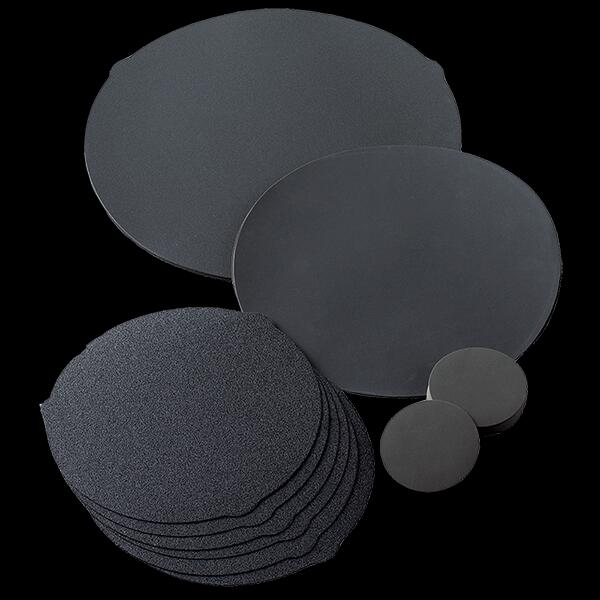

Silicon Carbide Grinding Diamond Grinding Discs

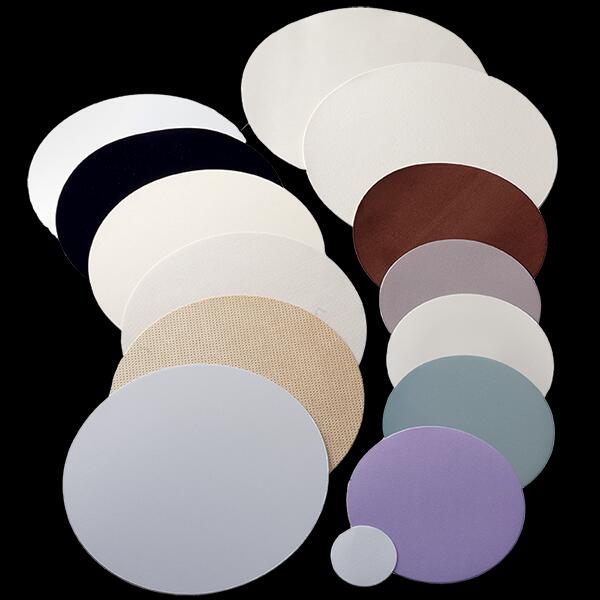

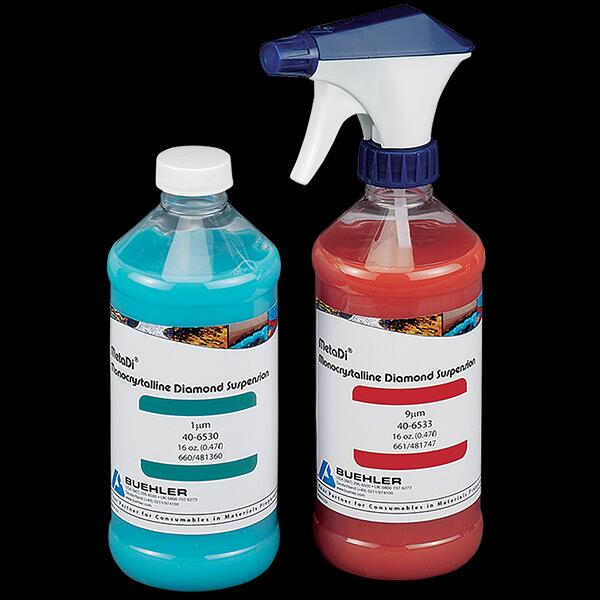

Polishing Cloths Diamond Suspensions & Pastes
Final Polishing Suspensions Specialty Grinding & Polishing

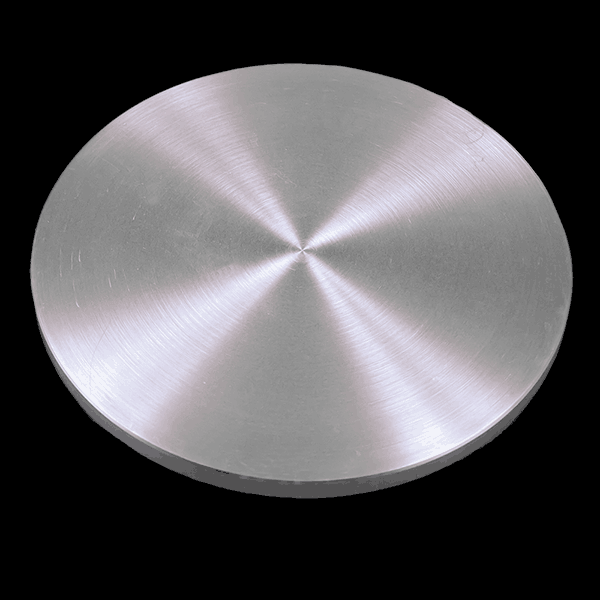

Sample Holders Platen Systems
